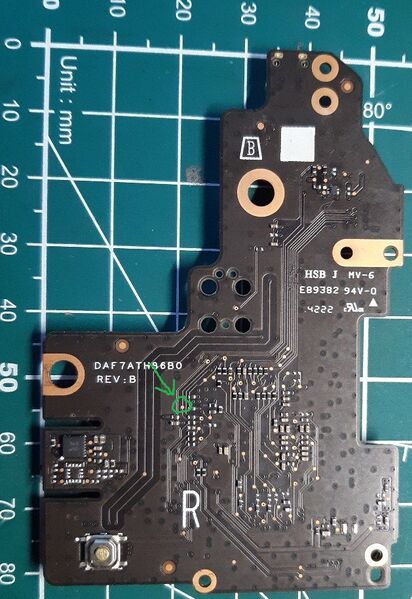

Figure 3: Test point of the R1 shoulder switch on the rev. B controller board. green circle: testing point for the R1 switch.
